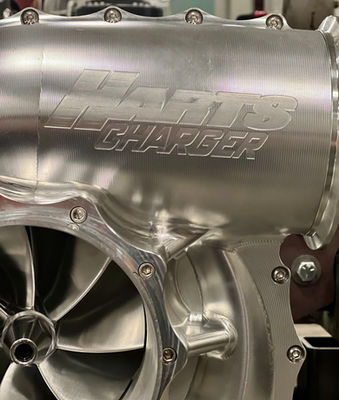

HARTS CHARGER

The newest addition to the Harts family, the Harts Charger is a billet, centrifugal supercharger machined and constructed completely in-house. The Harts Charger draws upon compressor technology from our multi-championship, record setting turbochargers. Available in 136mm and 140mm

Specifications:

  • Max Impeller RPM 80,000

  • Harts Proprietary Quad Angular Hydrodynamic Ceramic Ball Bearing System

  • Low Impact Crank Drive System

  • Pressure fed oiling system

  • 13.5” Volute Diameter

  • 4000 HP capable

  • Exducer 184mm

  • Internal Step up ratio 4.77

  • Weight: 88lbs

  • Available in 136mm and 140mm

  • 24.120 overall length without bell

  • In-house developed and machined crank-driven gear box with multiple ratios available
